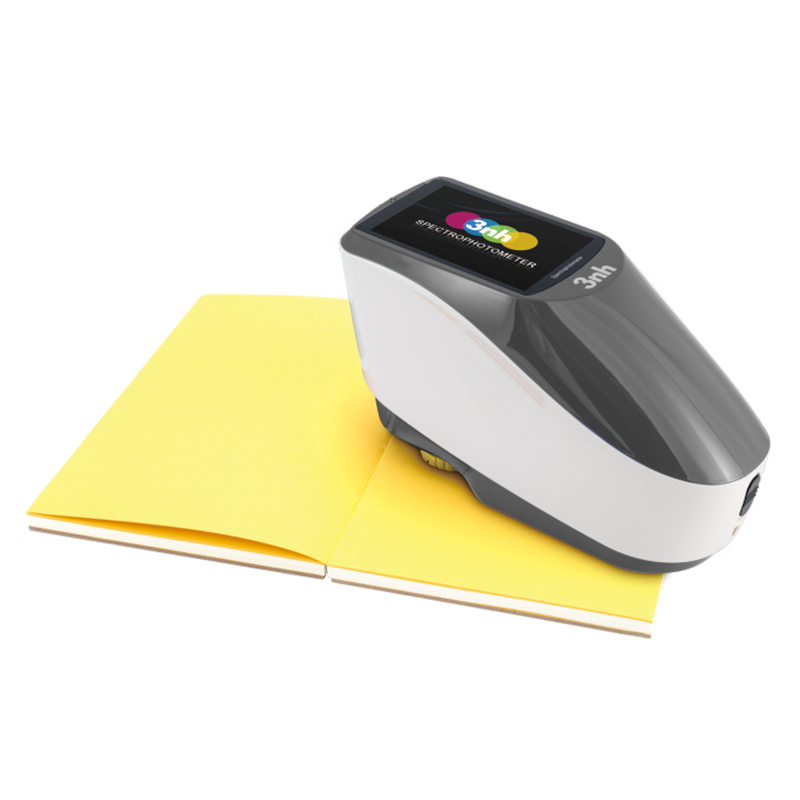

3nh launched new model YD5010 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard  ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; and it is able to customize single aperture Φ2mm，Φ4mm，Φ8mm.

Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1，M 2 , M 3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.


Product Features

1.Perfect combination of the beautiful appearance and the ergonomic structure design;

2.Combined LED light sources with long life and low power consumption, including UV light;

3.Optional apertures: Φ2/4/8mm, adapt to more samples;

4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

5.High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；

6.Two standard observer angles: 2/10, multiple light source modes and color systems;

7.USB mode is widely useful;

8.Large-capacity storage space, over 10,000 test data;

9.Especially suitable for process control and quality control of printing plants;

10. PC software has powerful function expansion.
