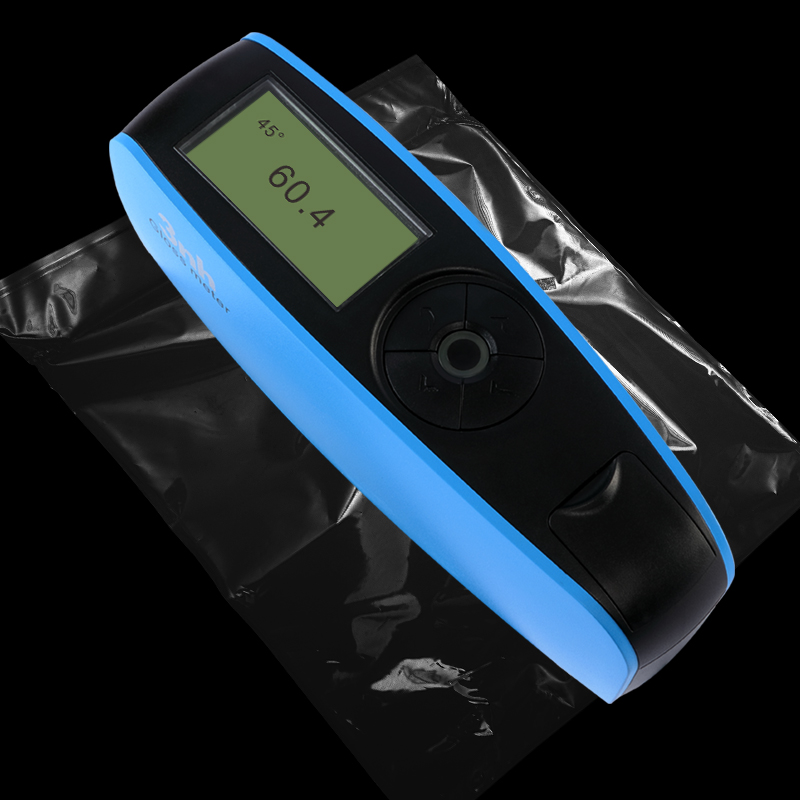

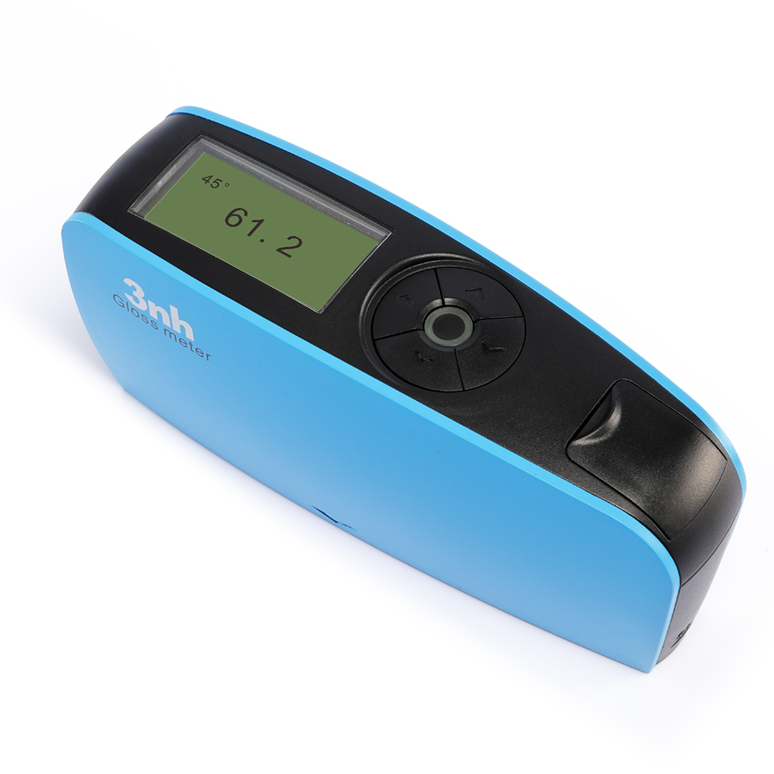

45° Gloss Meter YG45
45°HighPrecisionGlossMeterYG45isaprofessionalinstrumentformeasuringtheglossofanobjectsurface.Itusesa45°anglemeasurementmethodtoaccuratelymea........
price:$
Product Presentation

45°High Precision Gloss Meter YG45 is a professional instrument for measuring the gloss of an object surface. It uses a 45° angle measurement method to accurately measure the gloss of a product surface and is widely used in gloss measurement and quality inspection in industries such as ceramics, films, paper, and plastics.



45° High Precision Gloss Meter YG45 Product Features



1. Good operating experience

The streamlined curved surface design is more ergonomic, and it can maintain a comfortable grip even in daily or continuous work, effectively avoiding fatigue and bringing a good operating experience to users.

Good operating experience

2. Multi-mode measurement

Supports switching between basic mode, statistical mode, continuous mode, and quality control mode to adapt to different application scenarios. The normal mode allows for immediate measurement and fast readings; the quality control mode allows for custom upper and lower limits to achieve fast incoming material testing .

Multi-mode measurement

3. Low power consumption

A fully charged AA alkaline battery or NiMH rechargeable battery can measure more than 10,000 times.

Low power consumption

4. Calibration function

Supports calibration and has the function of automatically checking the calibration standard plate to ensure the accuracy and reliability of long-term measurement.

 Calibration function

5. Lightweight and portable

Lightweight design, easy to carry, not only suitable for precise measurement in the laboratory, but also convenient for flexible application in the production site.

 Lightweight and portable

6. Excellent inter-instrument difference and repeatability

The repeatability is very good. In the measurement range of 0-100GU, the repeatability can reach ±0.5GU, and in the measurement range of 100-800GU, the repeatability can reach ±0.5% GU .

Excellent inter-instrument difference and repeatability

7. High-precision measurement

Carefully adjusted measurement system and optical path layout ensure stable and accurate gloss measurement.

High-precision measurement

8. PC quality management software

The instrument is equipped with powerful PC data management software, which supports online measurement, printing test reports, data transmission and more functional expansion.

PC quality management software



45° High Precision Gloss Meter YG45 Technical Parameters

Product number YG45 45° High Precision Gloss Meter
Measuring Angles 45°
Measuring spot (mm) 45°:10x13
Measuring range 45°: 0~800GU
Graduation value 0~100GU:0.1GU;
100~800GU:1GU
characteristic  It can be used for gloss measurement and quality inspection in paint, ink, coating, paper printing, plastic electronics, furniture, ceramics, electroplating, hardware, marble and other industries.
Measurement Mode Basic mode, statistical mode, continuous mode, quality control mode
measure time 0.5 seconds
Repeatability 0~100GU: ±0.5GU ;
100~800GU:±0.5%GU
accuracy Meet the requirements of JJG 696 working gloss meter
Automatic shutdown time 30~120 seconds optional

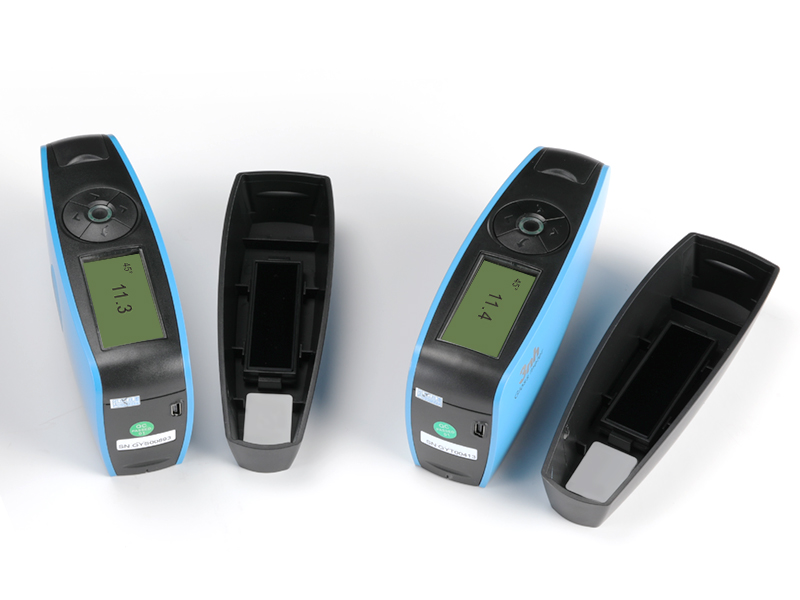

Long time calibration Auto Identify Calibration Board and Calibrate / manual calibration
language Simplified Chinese, English, Traditional Chinese
Storing data 35,000 ( 15,000 in basic mode and continuous mode , 10,000 in quality control mode , 10,000 in statistical mode )
Display 2.3 inch black and white display
size 160X52X84mm
weight About 300g ( including calibration box and batteries )
power supply 1 AA alkaline battery or NiMH rechargeable battery , can measure more than 10,000 times
interface USB
PC Software GQC6 quality management software, quality inspection report printing, more functional expansion
Operating temperature range 0~40 °C ( 32~104°F )
Storage temperature range -20~50 °C ( -4~122°F )
humidity Less than 85%RH , no condensation
Standard accessories USB data cable, instruction manual, GQC quality management software ( downloaded from the official website or provided by after-sales ) , calibration board
Optional accessories Micro printer, Bluetooth 5.0 adapter
Note The technical parameters are for reference only, please refer to the actual products sold
